When it comes to the product attributes of self-propelled sprayers, perhaps no feature is more critical for applicators than accuracy. Precise pesticide application is not only important for achieving good weed or pest control, it’s step one in demonstrating good environmental stewardship. And manufacturers continue to offer the latest precision technology that results in the most consistent, quality application possible.
1
of
14
1
of
14

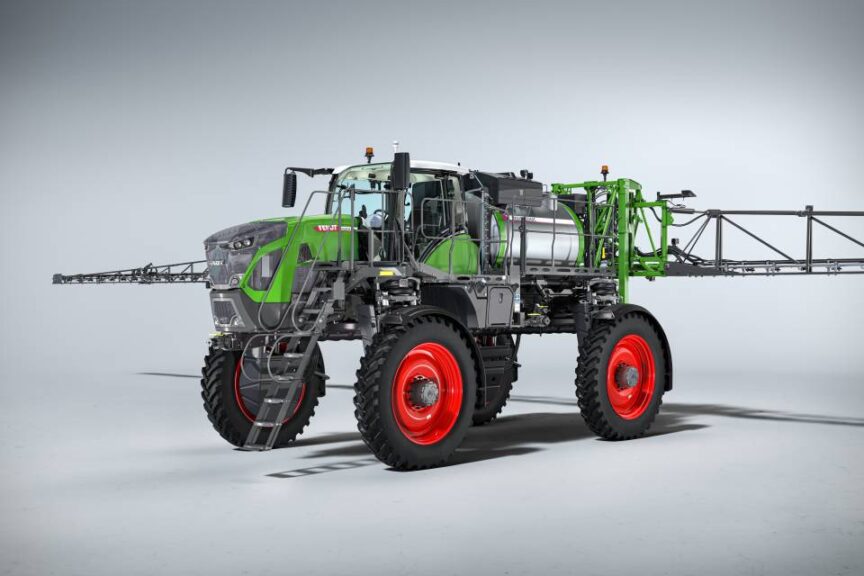

Fendt Rogator 900 Series (AGCO)
The Fendt Rogator 900 Series is a four-season machine boasting versatility and durability for use cases all year long. The applicator can run in standard clearance mode at 56-60 inches for many in season applications, and with the push of a button can raise to 72-76 inches for late season applications, depending on model. Changing from liquid to dry the combo ability is quick and easy and can be accomplished in less than two hours. These unique capabilities make the Rogator 900 ideal for use by farmers and retail operators at all stages of the growing cycle for tremendous flexibility and return on investment. As the first sprayer branded Fendt in North America, the 900 Series ushers in a new era of application equipment for AGCO. The Rogator 900 Series applicator is backed by Fendt’s three-year Gold Star Customer Care maintenance, service and warranty program.

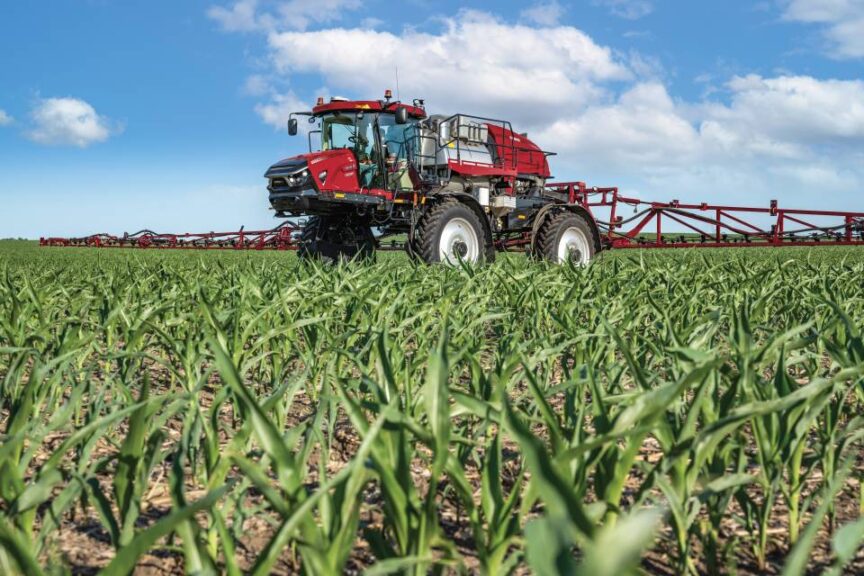

With an exceptional operator environment, complete vehicle control, enhanced connectivity solutions and integrated spray technology, the new Patriot 50 series sprayer is designed to help producers and ag retailers work more productively. Operators will appreciate the luxurious cab environment and an innovative 4-bar linkage chassis suspension system that delivers superior ride quality. Booms are available in width options from 60/90 to 69/135 feet — plus, each model can be equipped with optional AIM Command FLEX II advanced spray technology. With individual nozzle on/off control, AIM Command FLEX II helps ensure application accuracy and efficiency.

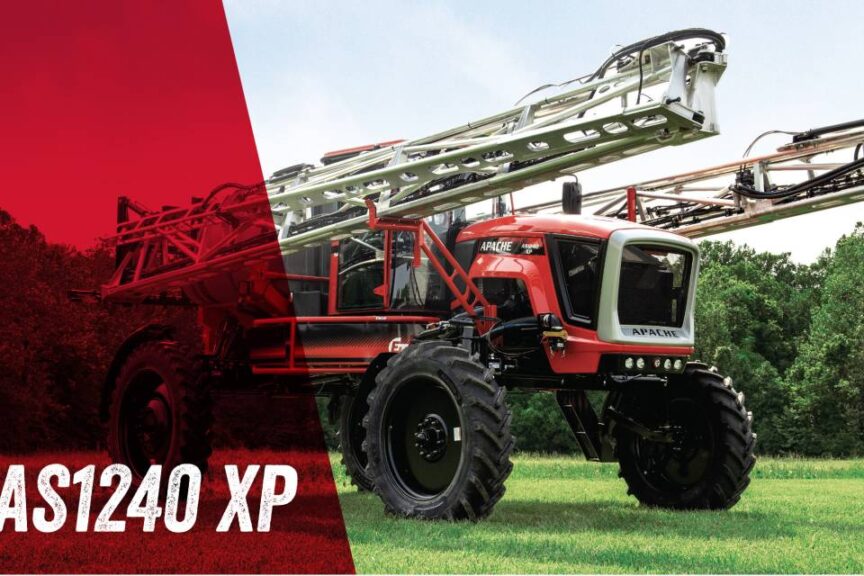

Approximately 33% lighter than its competitors and available in 300-hp, the XP package from Apache Sprayers provides the perfect combination of power, traction, and efficiency, the company says. This model offers the nextgen boom height and stability control system with Raven XRT with dampers (that can include boom AutoFold), plus an impressive range of enhanced spray techniques. These include precision application improvements for a wide range of spray speeds and rates (including nozzle-by-nozzle flow control), a quick spray mode (QSM) from machine display, and a front-fill option. The XP is boasting the highest-capacity model in the lineup, featuring a 1,200-gallon tank, so users spend less time refilling and more time spraying.

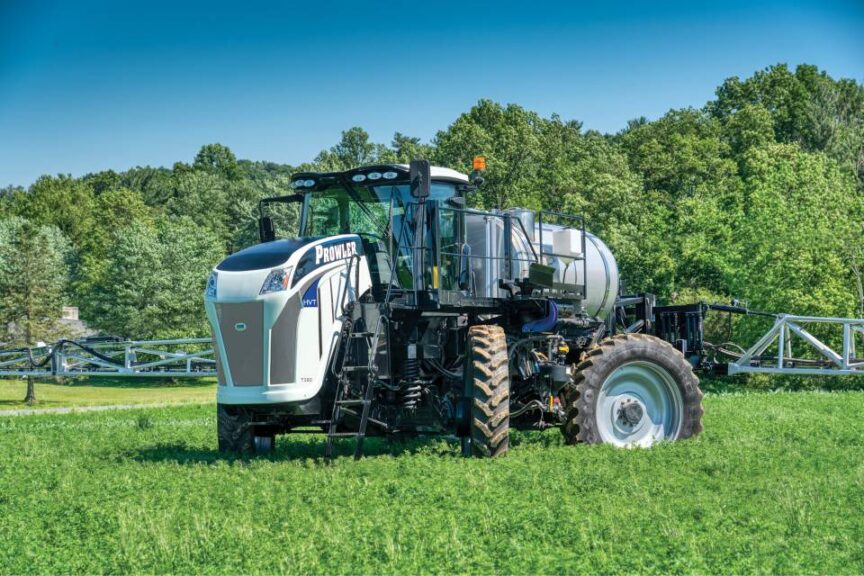

The T-Series Prowler offer some of the industry’s largest sprayer capacities, equipped with the 1,800-gallon stainless-steel product tank and built-in 100-gallon freshwater tank. Both units feature optional 120-foot aluminum fold-around booms on 20-inch or 20-/30-inch centers, Hypro wet-seal product pump, and a standard 15-section Altek air shut-off for precise product placement. The sprayer features Hypro Express Ends and a standard Raven ISO with seamless compatibility with any ISO controller. New for 2022, the Raven VSN Visual Guidance system, to minimize crop damage and ensure application is on target. The Prowler spray systems are rugged, built for durability, and allow operators to stay in the field longer between fill-ups, according to the company.

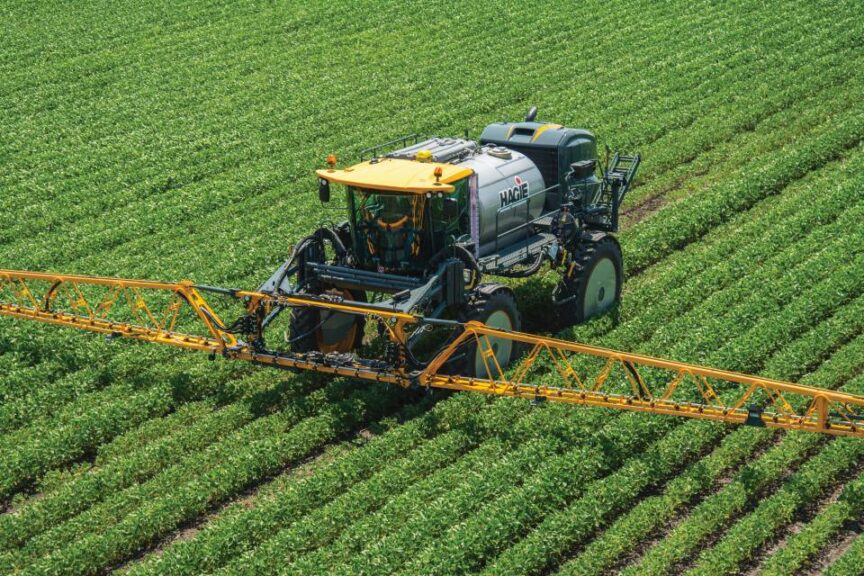

The Hagie STS16 self-propelled sprayer is the largest, highest capacity machine in the STS line-up, with the capability to perform all full-season application needs. The STS16 has a 1,600-gallon solution capacity, packaged together in a well-balanced machine design, featuring 72 inches of clearance, a 375-hp John Deere engine, an application-specific cab, and boom widths ranging from 90 feet to 132 feet. There are special considerations made for front-to-rear weight split, tight turning radius, narrow crop package, and expanded capabilities for fertilizer application. It incorporates the latest in John Deere precision ag technology, including JDLink Connect, a John Deere Gen 4 4640 Universal Display, and John Deere Rate Controller 2000.

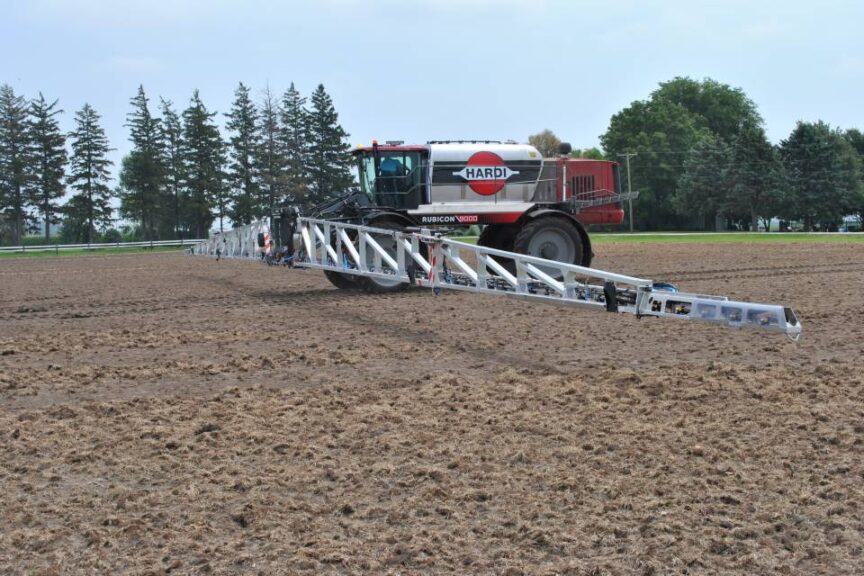

One of the largest self-propelled sprayers on the market, the Rubicon 9000 features a 2,200-gallon product tank and can be fitted with front-mounted aluminum booms ranging in lengths from 120 feet to 160 feet. It is equipped with a Cummins 8.9-liter QSL 9 engine that is capable of delivering up to 380-hp in operation while providing 72 inches of crop clearance.

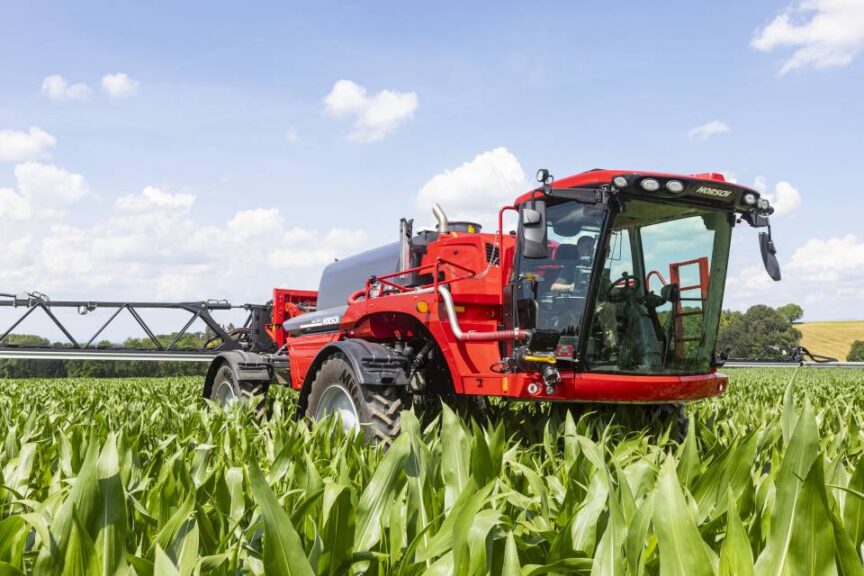

The core design of the Leeb VL focuses on solutions to control drift, system clean out, and productivity. The Leeb VL utilizes low boom heights (below 20 inches) for direct application and 10-inch nozzle spacings which maximizes coverage while minimizing the impact of drift. A recirculation system effectively flushes out the booms with one push of a button. Productivity is achieved with a 1,700-gallon product tank and 120-foot booms that feature industry-leading boom control thanks to BoomControl Pro. Also, late season spraying is possible with an impressive under-body clearance of 79 inches.

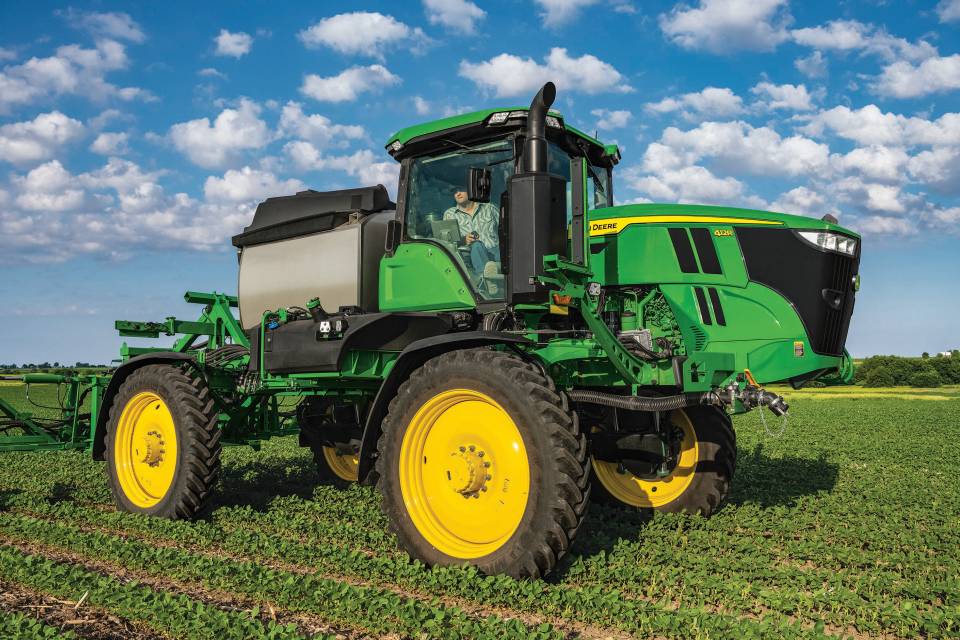

All 400 and 600 Series Sprayers feature a John Deere PowerTech Engine and the fuel-saving CommandDrive powertrain. The 408R features an 800-gallon tank and a 280-hp PowerTech 6.8-L engine. The 410R is equipped with a 1,000-gallon tank and a 310-hp PowerTech 9-L engine. The 412R comes with a 1,200-gallon tank and is powered by a 326-hp PowerTech 9-L engine. The 612R features a 1,200-gallon tank and a 355-hp PowerTech 9-L engine. The largest model is the 616R equipped with a 1,600-gallon tank and a 375-hp PowerTech engine. All 400 and 600 Series Sprayers can be equipped with 90-, 100-, or 120-foot steel booms, or 120- or 132-foot carbon-fiber spray booms.

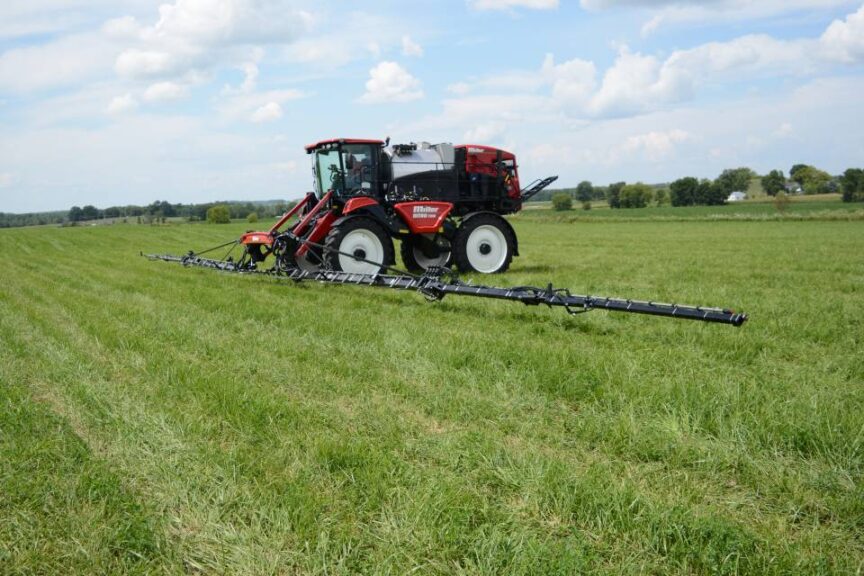

Miller Nitro 7000 series front boom sprayers are built to exceed the demanding requirements of today’s commercial applicators and growers. They feature very quiet sprayer-built cabs, up to 78 inches of crop clearance, and exceptional visibility. Technology is also at the top of the list with AutoFold Booms, IntelliHeight XRT boom height control, IntelliSpray nozzle control, and telematics. With boom sizes up to 135 feet and tanks sizes up to 1,600 gallons, the acres will go by quickly.

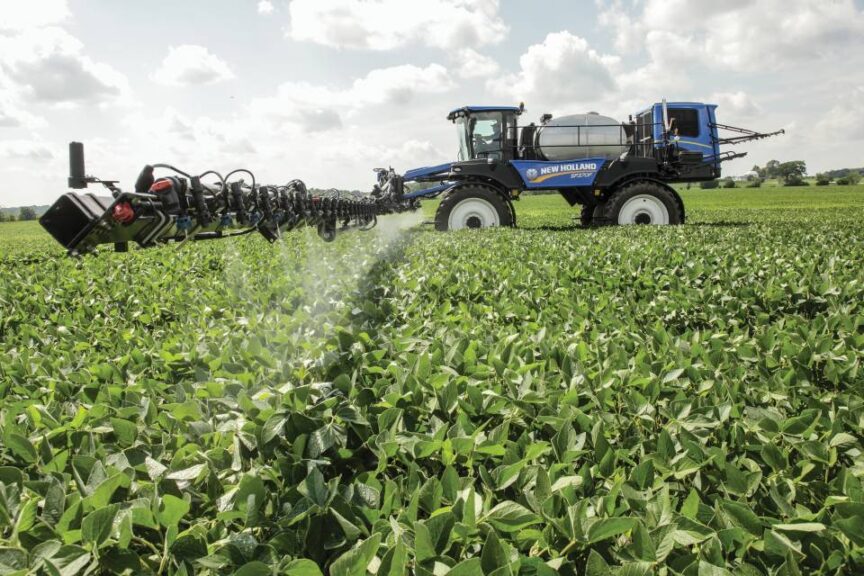

Guardian front boom sprayers are designed for full-season application and operator comfort for optimum production capabilities. Features include: Crop clearance up to 78 inches, AutoFold booms, IntelliHeight XRT boom height control, IntelliSpray nozzle control system, IntelliSteer at headlands, data management systems, and even AutoRinse. Ultraquiet sprayer specific cabs and very smooth ride all add up to making the long days easier and feel a little shorter, the company says.

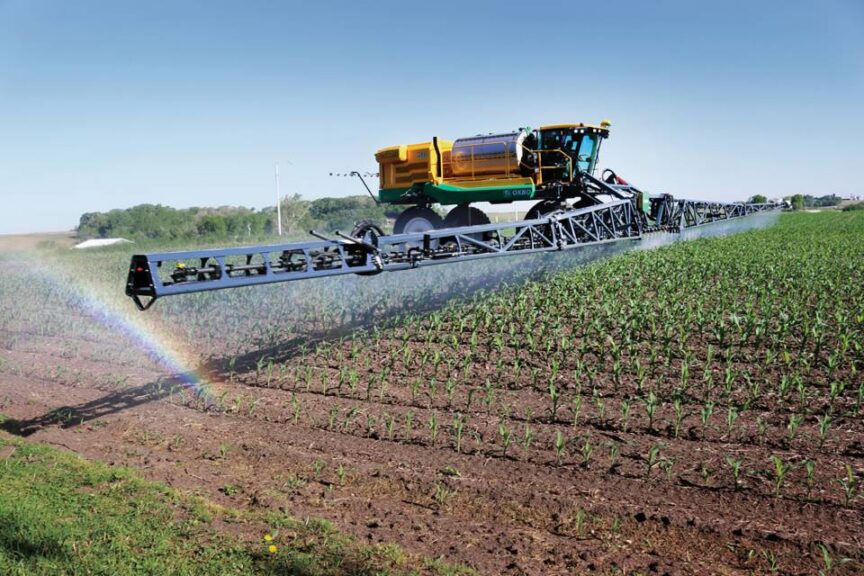

Oxbo 7650/7550 sprayers have multiple options, including choice of 1,200 or 1,600 gallons, 90- to 120-foot Millennium booms, and walking beam chassis suspension. A direct-injection system is available, with up to four tanks, and a choice of Ag Leader, John Deere, or Raven precision. Full-time, four-wheel drive and all-wheel steer keeps operators going in the muddiest conditions. The unit features the highest crop clearance in the industry (77 inches), a Scania DC09 engine, and manufacturer-direct support, the company says.

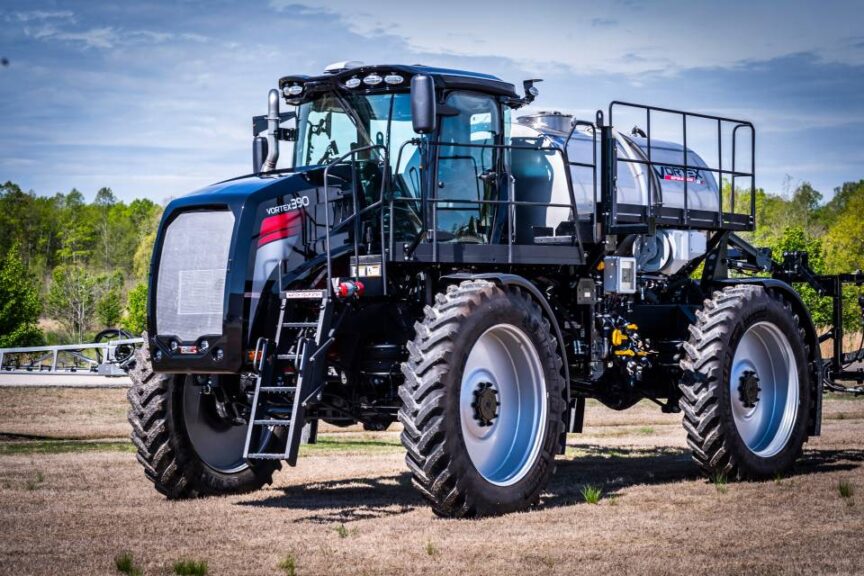

RBR Vortex sprayers are engineered with proven RBR chassis performance. Cover more ground and maximize ROI with either a 1,600- or 2,000-gallon tank and boom options from 90 feet up to 135 feet. The new center rack increases the life of the booms and the added display at the loading station allows for a one-touch operation that controls load station valves and the cleaning system. Vortex sprayers are now available with a recirculation boom system, auto-fold booms, Raven XRT and Hawkeye 2.

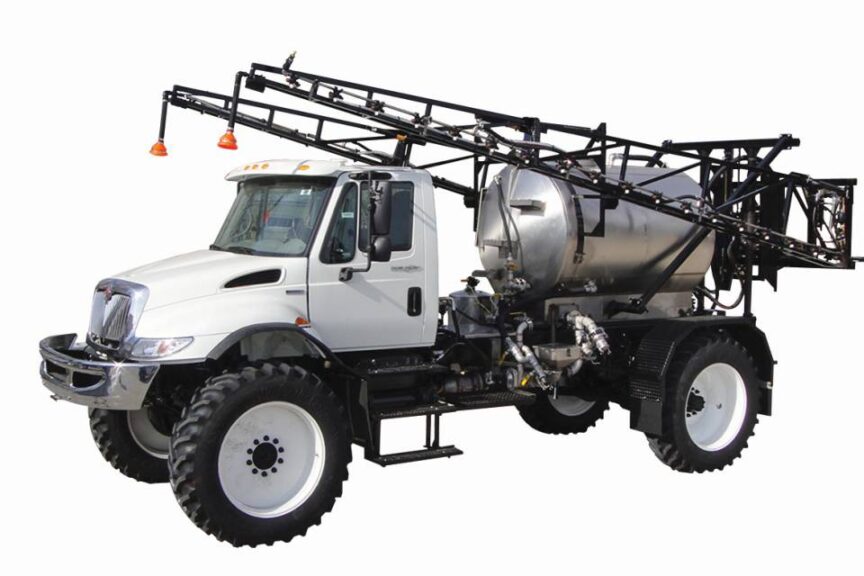

The ExtraLite Pasture Spreader and Sprayers are sized to be versatile productive machines for smaller fields or where more travel is required at far more affordable price point. Much more capable than pickup units but with more durable chassis permitting spreader boxes and spray tanks. These small to mid-sized applicators have proven to be popular in many regions and fit the bill even in the Midwest for smaller jobs. Several tank sizes, booms, and tire packages are available, including row crop tire spacings.

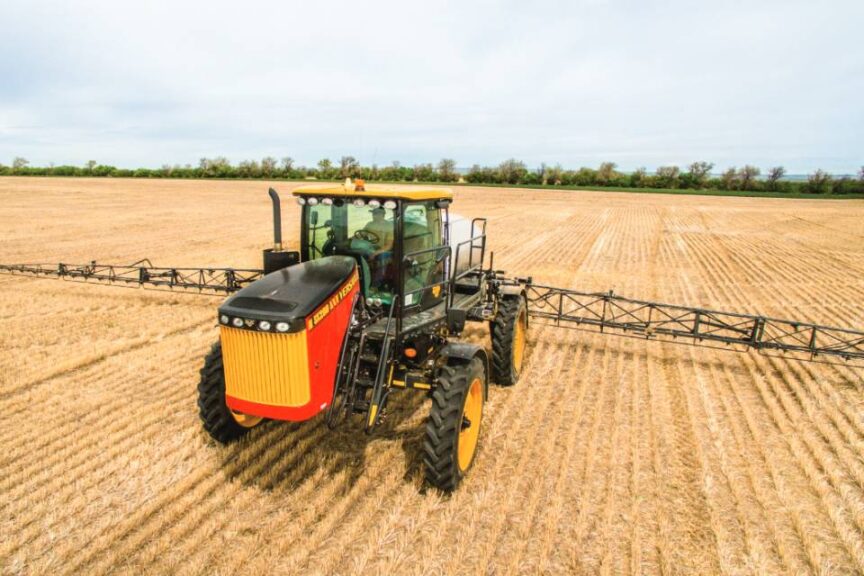

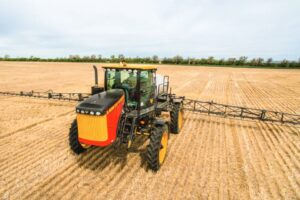

The SX280 is available with optional 120-foot aluminum booms. Additional options include Raven Viper 4, AutoSteer-readiness, and rear duals in 320 and 380 tire widths with 22- and 30-inch spacing (wider floatation tires are also available). The rig is powered by a Cummins QSB6.7L, meeting interim Tier 4 emission standards. Buyers can choose product tank options of a 1,200-gallon stainless-steel or 1,000-gallon poly-urethane tank.
For a look at self-propelled sprayers from companies like AGCO, Case IH, Deere, New Holland, and more, that are likely to receive a lot of attention for their accuracy, as well as a host of other product features, view the photo gallery above.
